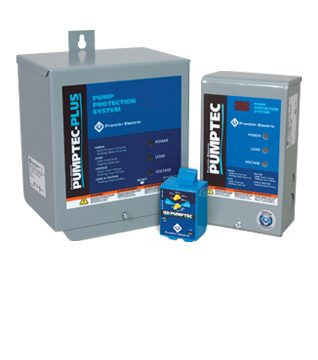

PUMPTEC-PLUS: HIGH PERFORMANCE PUMP PROTECTION FOR HIGH HORSEPOWER SUBMERSIBLE MOTORS
Pumptec-Plus provides the high performance pump protection you need deep down in the well.    Franklin Electric's solid state pump protection system is programmed to prevent damage to 1/2 to 5 HP single-phase submersible pump motors.    Push button Snap Shot™ calibration makes Pumptec-Plus simple to install and a great troubleshooting tool.

FEATURES
Over/Under Voltage Protection
Over/Under Load Protection
Rapid Cycle Detection
Microprocessor Controlled
Automatic Restart Timer
Push Button Calibration
Run Indicator Light
Fault Indicator Lights
30 Amp 5 HP Heavy Duty Contactor
Suitable For Outdoor Use
Easy Installation
UL Recognized and Csa Certified
Works w/PSC, Split-phase CSCR and CSIR Motors

PUMPTEC-PLUS PROTECTS AGAINST:

Low Yield Well
High or Low Voltage
Rapid Cycling
Power Surges
Drop in Water Level
Cavitation (Air Lock)
Water Logged Tank
Sand or Mud Clogging
Faulty Check Valve

SPECIFICATIONS
Model Number 580 006 0100 (60Hz)
580 006 0500 (50Hz)
HP Rating 1/2 - 5 HP
Voltage 60Hz - 230V Single-phase
50Hz - 220V Single-phase
Power Consumption 5 watts
Operating Temperatures -15° to 140°F
Over/Under Load Trip ± 25%(1)
Over/Under Voltage Trip ± 10%
Auto Reset Time 1 min. - 4 hr. 16 min.
Approvals UL/CSA
(1) ± 25% of user calibration
